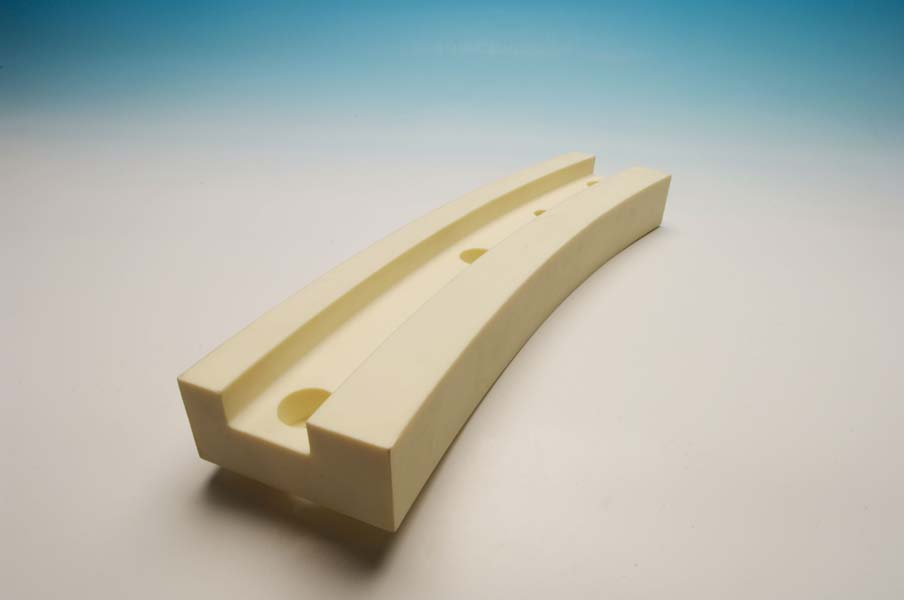

Thordoncn SXL作为取代碳石墨和酚醛密封段的分段轴封材料，有着良好的记录。

▪ 卓越的抗冲击性-抗轴错位或振动开裂

▪ 定制工程和CNC加工

▪ 易于安装

Thordoncn SXL has a good record as a segmented shaft seal material that replaces carbon graphite and phenolic sealing segments.

▪  Excellent impact resistance - resistant to axial misalignment or vibration cracking

▪  Customized engineering and CNC machining

▪  Easy to install

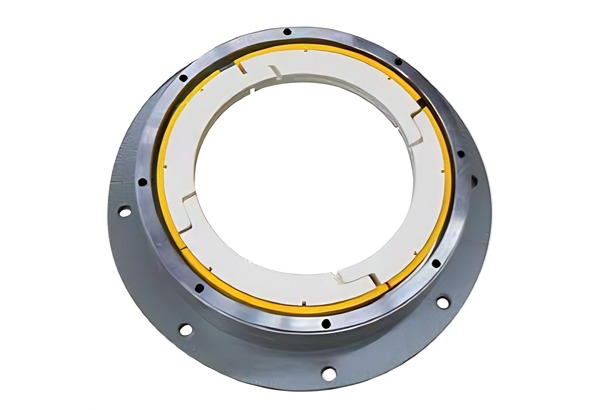

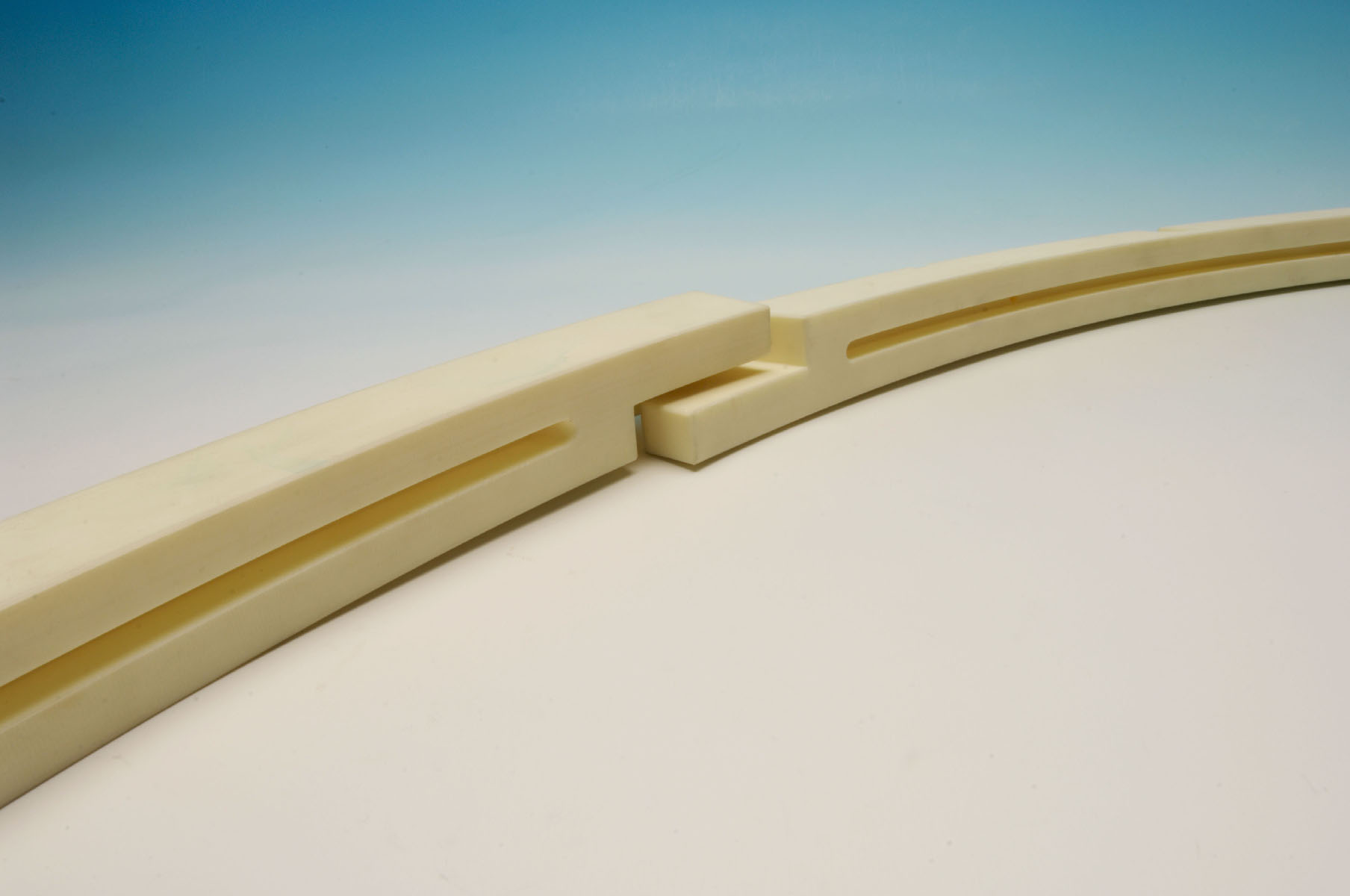

Thordoncn SXL分段轴封的操作参数在最大界面压力和最小泄漏率方面通常与碳石墨或酚醛密封的操作参数相似。Thordoncn分段轴封专为直径达2000毫米（80英寸）的轴而设计。它们可以设计用于径向或轴向密封系统。

水轮机的主轴密封通常在高PV值条件下运行，也可能经常暴露在水中的磨料中。Thordoncn分段轴封是一种经过验证的解决方案，可在清洁和含磨料的水中工作。

轴封可以位于涡轮导向轴承的下方或上方，具体取决于使用的是水润滑还是油润滑的轴承溶液。

Thordoncn径向分段轴封能够在高达0.7 MPa（100 psi）的最大密封水压下运行。对于密封水压大于0.7MPa（100 psi）的情况，通常建议使用轴向密封解决方案。

根据轴尺寸、分段数量、分段加工精度、密封水压和轴速度，泄漏量可能会有所不同，但会低于等效的碳石墨分段密封。例如，由6段组成的径向分段密封在直径为400毫米（15.75英寸）的轴上运行，泄漏率通常在10-20升/分钟（2.6至5.2美制加仑/分钟）的范围内。

CN-SXL分段密封设计的其他优点包括，无需拆卸轴或任何主要结构部件，即可轻松安装和更换所有密封部件。

The operating parameters of Thordoncn SXL segmented shaft seals are usually similar to those of carbon graphite or phenolic seals in terms of maximum interface pressure and minimum leakage rate. Thordoncn segmented shaft seals are designed specifically for shafts with diameters up to 2000 millimeters (80 inches). They can be designed for radial or axial sealing systems.

The main shaft seal of a water turbine typically operates under high PV conditions and may also be frequently exposed to abrasives in water. Thordoncn segmented shaft seal is a validated solution that can work in clean and abrasive water.

The shaft seal can be located below or above the turbine guide bearing, depending on whether a water lubricated or oil lubricated bearing solution is used.

Thordoncn radial segmented shaft seals can operate under maximum sealing water pressure of up to 0.7 MPa (100 psi). For situations where the sealing water pressure is greater than 0.7 MPa (100 psi), it is usually recommended to use an axial sealing solution.

The leakage may vary depending on the shaft size, number of segments, segment processing accuracy, sealing water pressure, and shaft speed, but it will be lower than the equivalent carbon graphite segmented seal. For example, a radial segmented seal consisting of 6 segments operates on a shaft with a diameter of 400 millimeters (15.75 inches), with a leakage rate typically ranging from 10-20 liters per minute (2.6 to 5.2 US gallons per minute).

Other advantages of the CN-SXL segmented sealing design include easy installation and replacement of all sealing components without the need to disassemble the shaft or any major structural components.
