Thordoncn-Blue Thermoplastic

Thordoncn-Blue具有比大多数泵轴承更高的耐磨性和干启动能力。CN-Blue的温度额定值提高到80°C（176°F），对大多数碳氢化合物、弱酸和碱具有耐化学性。这种专有的工程热塑性轴承是一种免维护的替代品，可替代润滑青铜轴承，其动态工作压力可达45 MPa（6527 psi）。CN-Blue的吸水率低于0.15，低于大多数非金属轴承，使其成为需要低轴间隙的泵的理想选择。CN-Blue易于加工和安装，可随时提供成品轴承或管材。

Thordoncn-Blue Thermoplastic

Thordoncn Blue has higher wear resistance and dry start capability than most pump bearings. The temperature rating of CN Blue has been increased to 80 ° C (176 ° F), providing chemical resistance to most hydrocarbons, weak acids, and bases. This proprietary engineering thermoplastic bearing is a maintenance free alternative to lubricated bronze bearings, with a dynamic working pressure of up to 45 MPa (6527 psi). The water absorption rate of CN Blue is less than 0.15, which is lower than most non-metallic bearings, making it an ideal choice for pumps that require low shaft clearance. CN Blue is easy to process and install, and can provide finished bearings or pipes at any time.

Thordoncn止推轴承推荐采用承载面压更高的等级CN-Blue和CN-GREY，动态可达30MPa以上，主要应用于自液润滑条件下。

▪ 独特的专利设计，稳定润滑液膜；

▪ 低摩擦，低起动扭矩，高效节能；

▪ 耐磨且对摩擦副对偶磨损小；

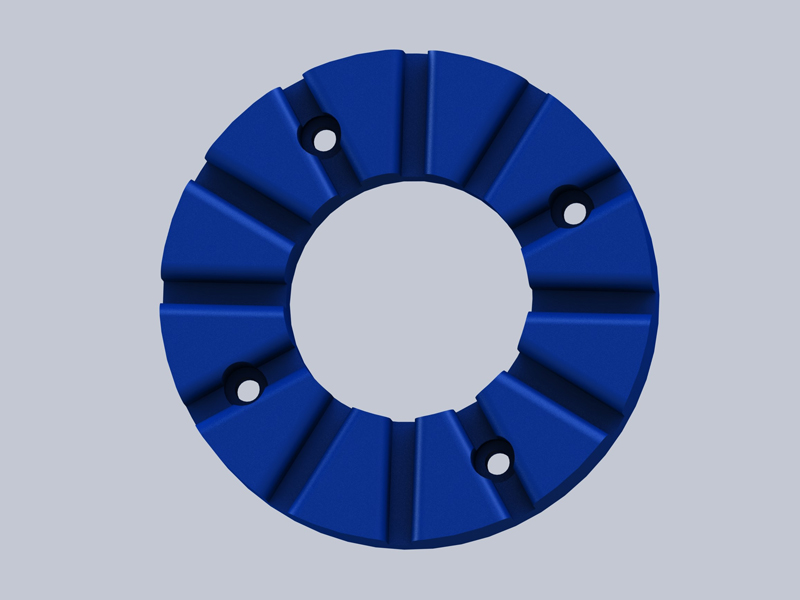

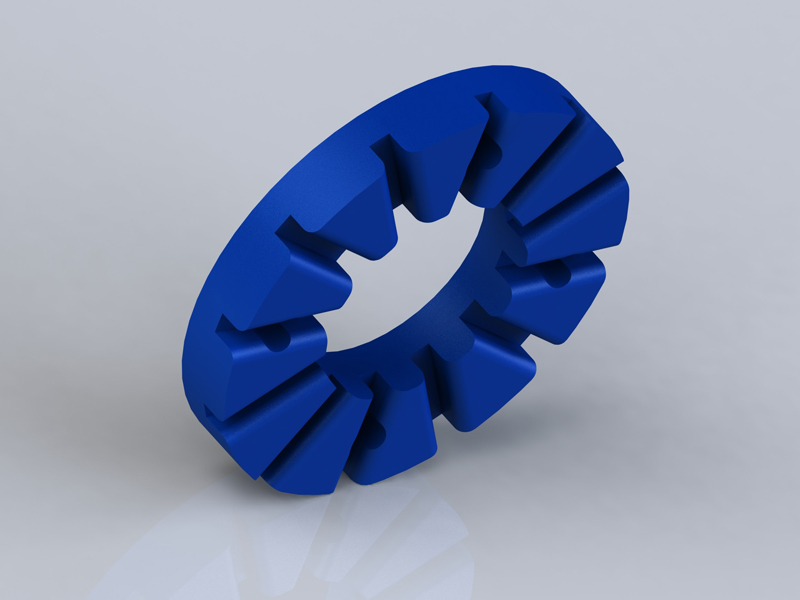

Thordoncn thrust bearings are recommended to use grades CN Blue and CN-GREY with higher bearing surface pressure, which can dynamically reach over 30MPa and are mainly used under self lubrication conditions.

▪  Unique patented design, stable lubricating liquid film;

▪  Low friction, low starting torque, efficient and energy-saving;

▪  Wear resistant and have minimal dual wear on friction pairs;

▪  Strong and impact resistant.

相对体积磨耗比较 (mm³)
