Thordoncn SXL

高耐磨性和干启动能力

Thordoncn SXL已成功用作泵轴承多年，并得到大多数泵制造商的认可。它的摩擦系数低于大多数VTP轴承。低摩擦轴承运行时间更长，磨损更少，启动扭矩要求更低。这也转化为30秒或更长时间的出色干启动能力。

CN-SXL的主要优点之一是其优异的耐磨性。

水导轴承（过盈压装）

整圆筒式水泵导轴承可选用冷冻安装或压力安装

Thordoncn SXL

High wear resistance and dry start capability

Thordoncn SXL has been successfully used as a pump bearing for many years and has been recognized by most pump manufacturers. Its friction coefficient is lower than most VTP bearings. Low friction bearings have longer operating time, less wear, and lower starting torque requirements. This also translates into excellent dry start ability for 30 seconds or longer.

One of the main advantages of CN-SXL is its excellent wear resistance.

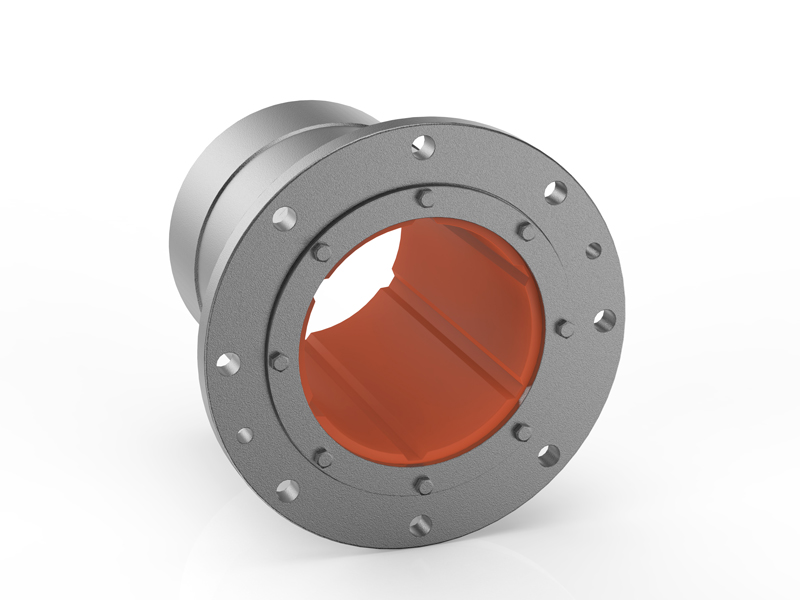

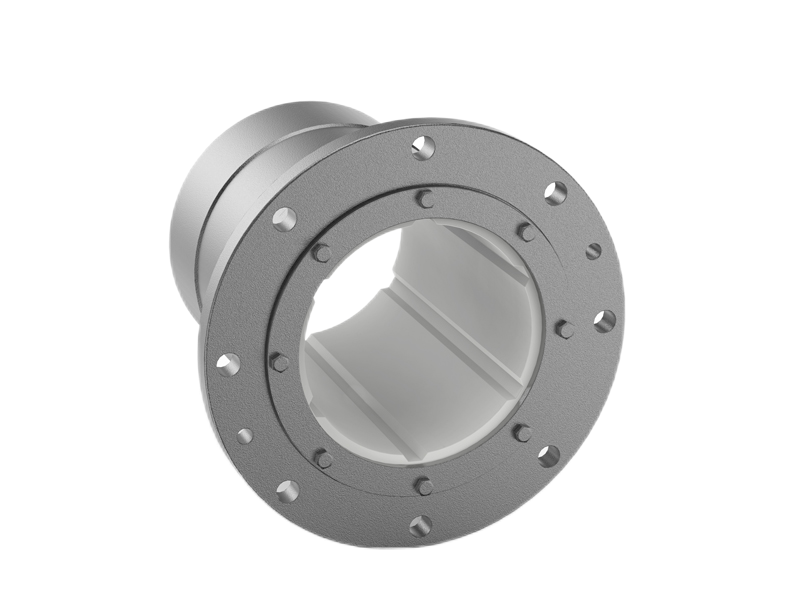

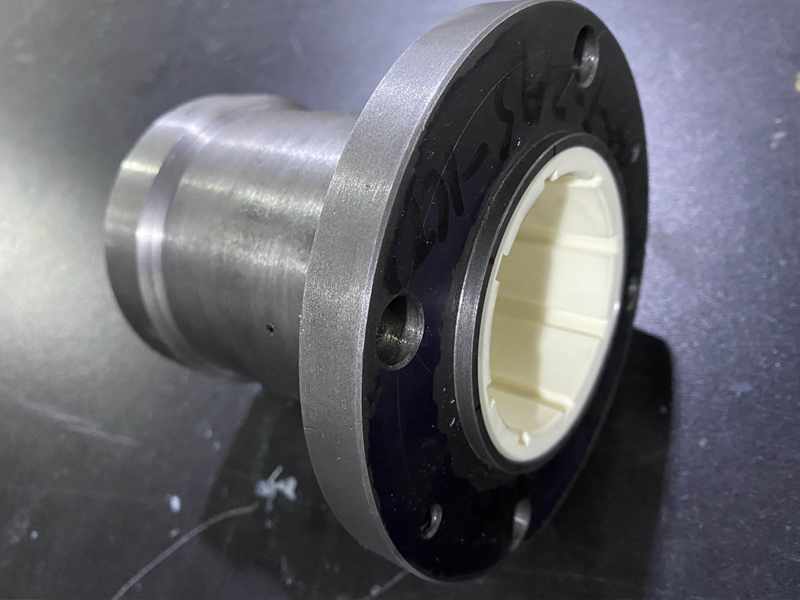

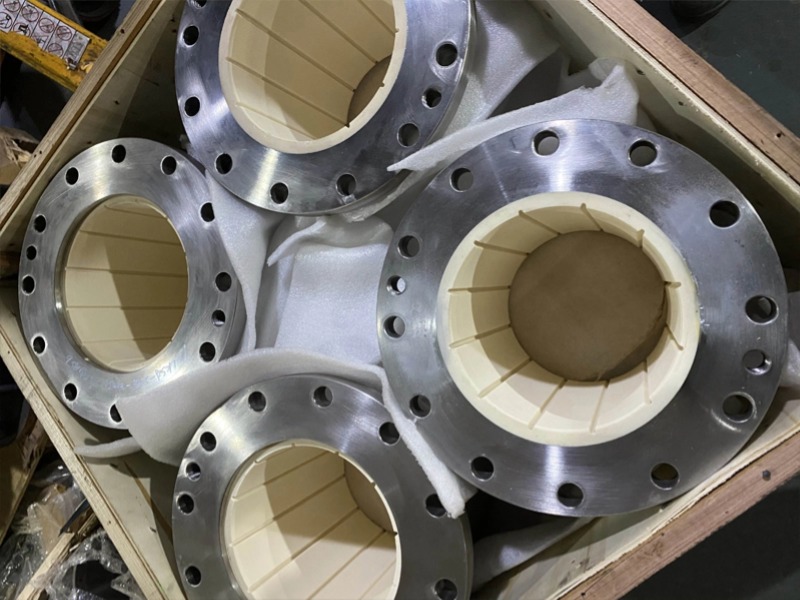

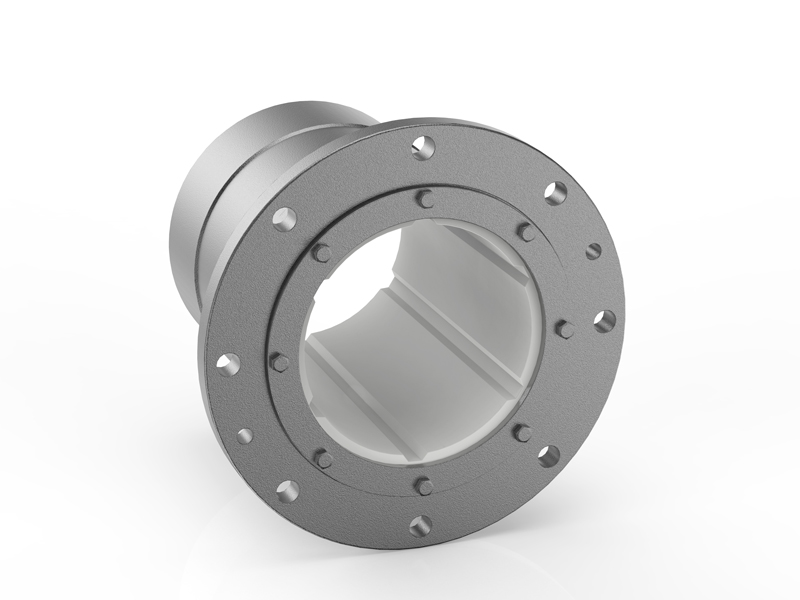

Water guide bearing (interference fit)

The guide bearing of the cylindrical water pump can be installed by freezing or pressure

整圆筒式水泵导轴承可选用冷冻安装或压力安装：

由于昱龙系列Thordoncn材料具有较高的热膨胀系数，建议优先采用冷冻安装（液氮或干冰）；

当不具备冷冻安装的工装条件时，可以考虑压力安装（此时Thordoncn轴承需按要求倒角）。

The guide bearing of the cylindrical water pump can be installed by freezing or pressure:

Due to the high thermal expansion coefficient of the Thordoncn material in the Yulong series, it is recommended to prioritize the use of cryogenic installation (liquid nitrogen or dry ice);

When the tooling conditions for cold installation are not available, pressure installation can be considered (at this time, Thordoncn bearings need to be chamfered as required).

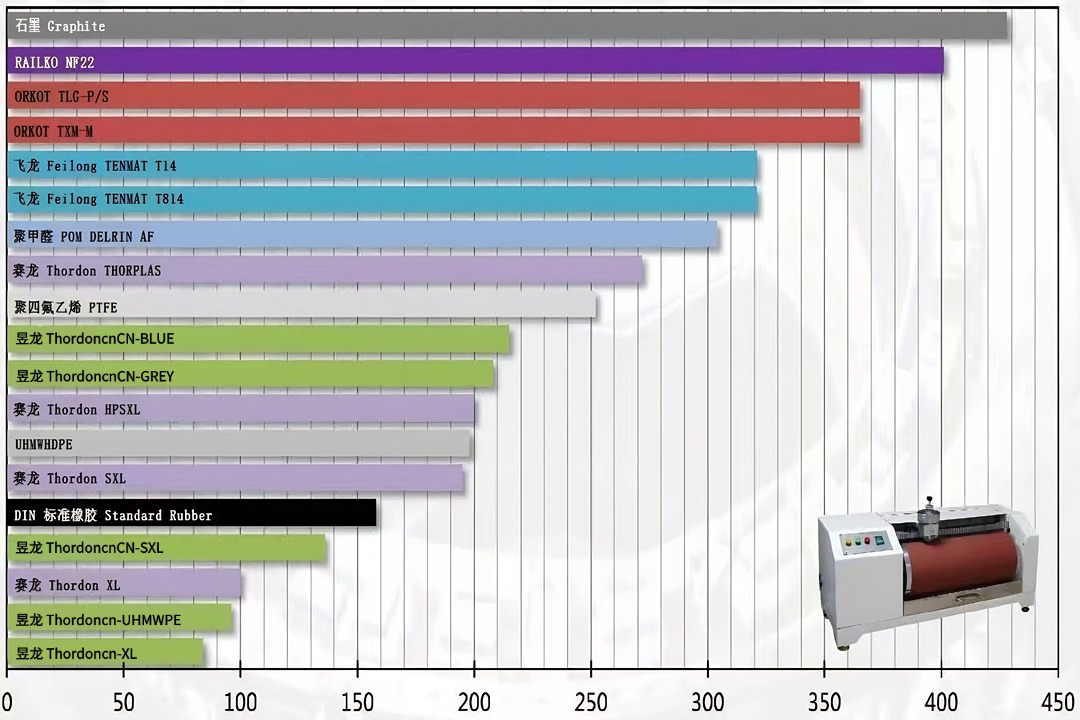

相对体积磨耗比较 (mm³)

注：部分数据摘自赛龙《产品说明书》
