Thordoncn SXL

高耐磨性和干启动能力

Thordoncn SXL已成功用作泵轴承多年，并得到大多数泵制造商的认可。它的摩擦系数低于大多数VTP轴承。低摩擦轴承运行时间更长，磨损更少，启动扭矩要求更低。这也转化为30秒或更长时间的出色干启动能力。

CN-SXL的主要优点之一是其优异的耐磨性。

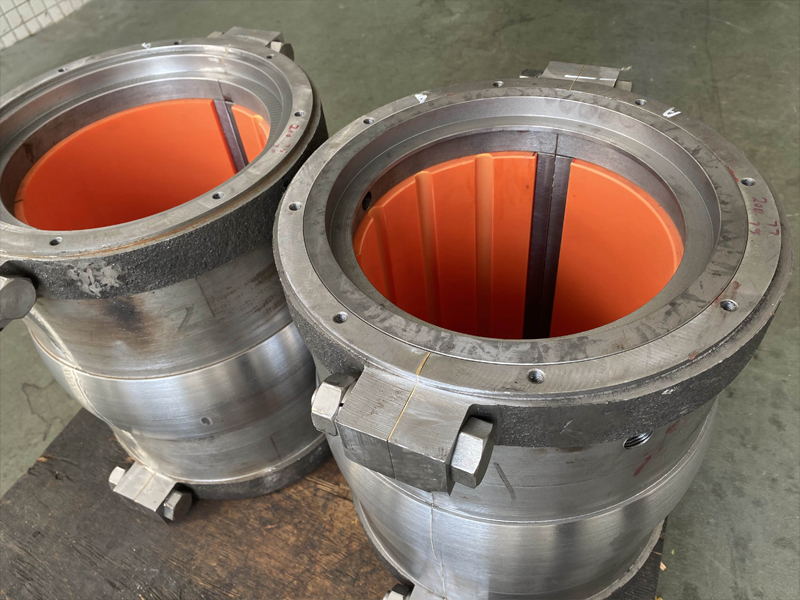

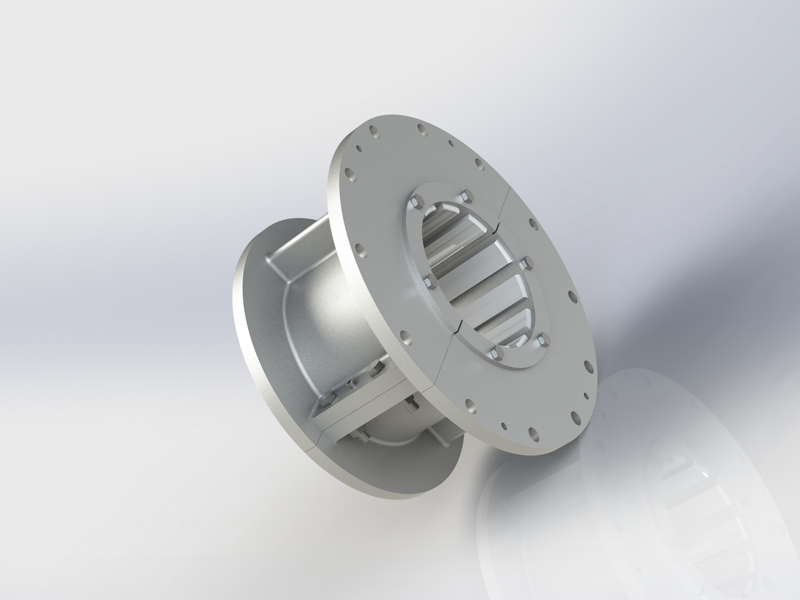

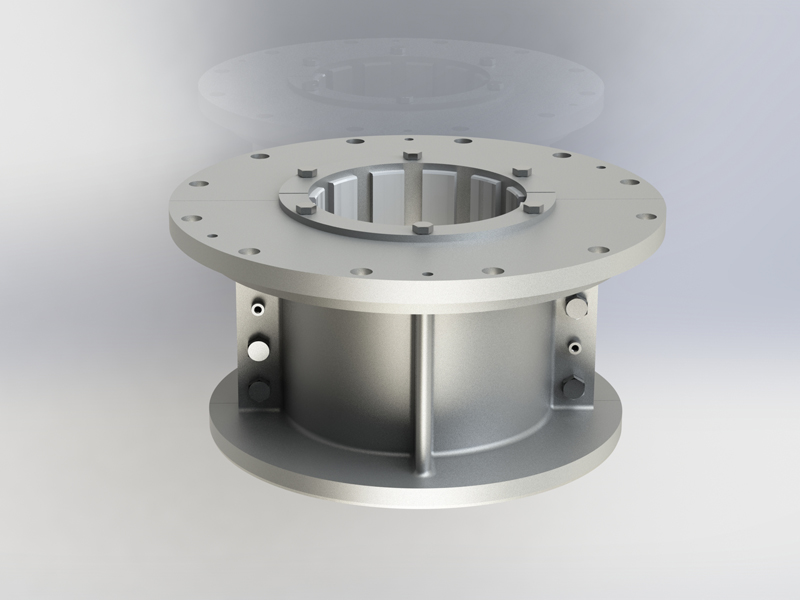

Thordoncn SXL轴承可由燕尾板条轴瓦灵活拼装成对开轴承，便于安装和维修，无需出轴，较之筒式轴承过盈安装更可靠。检修时如有需要，可便捷地替换板条轴瓦，也可以在一个轴承中混合或交错装配多种不同材料等级的均质弹塑体聚合物合金燕尾板条轴瓦，轴承达到耐磨，自润滑，有效控制震摆的平衡。

Thordoncn SXL

High wear resistance and dry start capability

Thordoncn SXL has been successfully used as a pump bearing for many years and has been recognized by most pump manufacturers. Its friction coefficient is lower than most VTP bearings. Low friction bearings have longer operating time, less wear, and lower starting torque requirements. This also translates into excellent dry start ability for 30 seconds or longer.

One of the main advantages of CN-SXL is its excellent wear resistance.

Thordoncn SXL bearing can be flexibly assembled into split bearing by dovetail Flat noodles bearing bush, which is convenient for installation and maintenance without shaft out, and is more reliable than interference installation of cylindrical bearing. If necessary during maintenance, Flat noodles bearing shells can be easily replaced, or a variety of homogeneous elastoplastic polymer alloy dovetail Flat noodles bearing shells with different material grades can be mixed or staggered assembled in one bearing. The bearing can achieve wear resistance, self-lubricating, and effectively control the balance of vibration.

燕尾板条轴瓦材料有三个等级可供选择，水泵默认选用白色CN-SXL。板条出厂以环境温度21~28℃，相对湿度40-60%条件下控制公差。超出此环境条件，板条尺寸有可能受环境条件影响，超出公差范围。遇此情形，请提交测量环境条件及板条尺寸与厂家联系确认是否合理可用。（板条最长830mm，可按需订制）

There are three grades of dovetail Flat noodles bearing materials to choose from, and white CN-SXL is selected by default for the water pump. The tolerance of Flat noodles shall be controlled at the ambient temperature of 21~28 ℃ and relative humidity of 40-60%. If the environmental conditions are exceeded, the dimension of Flat noodles may be affected by the environmental conditions and exceed the tolerance range. In this case, please submit the measurement environmental conditions and Flat noodles size to contact the manufacturer to confirm whether they are reasonable and available. (The longest Flat noodles is 830mm, which can be customized as required)

关键词：赛龙轴承，水润滑轴承，高分子材料轴承，高性能聚合物滑动轴承

相对体积磨耗比较 (mm³)

注：部分数据摘自赛龙《产品说明书》
